Electrically Conductive Die Attach Paste

What is Electrically Conductive Die Attach Paste?

Conductive chip bonding is an important part of semiconductor packaging. It involves using specific materials and technologies to firmly connect the chip to the substrate or Electrically conductive die attach paste: A special glue to which metal powder or fiber is added to enhance its conductive properties. Conductive glue has the advantages of environmental friendliness, mild process conditions, simple process and high line resolution. It can be used in scenes such as assembly of microwave components and bonding of low-power components.

Features of Electrically Conductive Die Attach Paste

• One-part, solvent-free, conductive epoxy or silicone

• Minimal resin bleed in Au-plated PCB, even after plasma treatment.

• It's good choice to replce soldering so as to avoid void

MCOTI Electrically Conductive Die Attach Paste Recommendations

Typical Products:

Products	Chemistry	Appearance	Viscosity mPa.s	Specific Gravity	Features

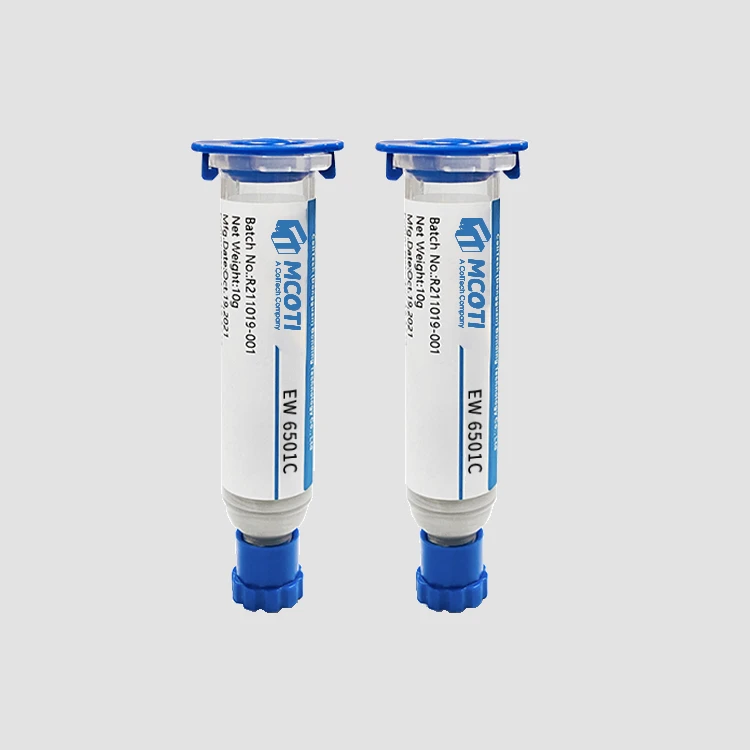

EW 6501C	Epoxy	Silver	12,000	3.5	High DSS and lower modules which provide robust performance among wide range of die siz < 2 *2 mm Have passed the MSL3 in TFME and the application is Die attach
EW 6501CT-1	Epoxy	Silver	14,450	3.5	High DSS and lower modules which provide robust performance among wide range of die size > 2 *2 mm Have passed the MSL3 in TFME and the application is Die attach
N-Sil 8395	Silicone	Grey	Grey	3.25	Excellent adhesion, Excellent conductivity High reliability
