Your Professional Curing Oven Supplier
MCOTI Technology Co., Ltd., established in 2008, is a professional electronic adhesive supplier. The company is committed to providing comprehensive solutions including adhesive materials, curing and dispensing equipment for electronic equipment and automotive parts assembly.
In terms of products, MCOTI specializes in the production of adhesives, industrial glues, electronic adhesives, dispensing equipment, adhesive curing equipment and other products, and provides customers with excellent customized solutions and services.
-

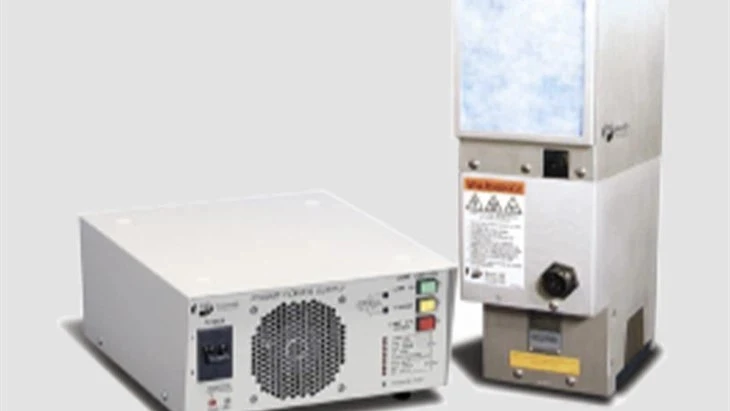

![Electroless Microwave Lamp]()
Electroless Microwave LampElectroless Microwave Lamp F300S -

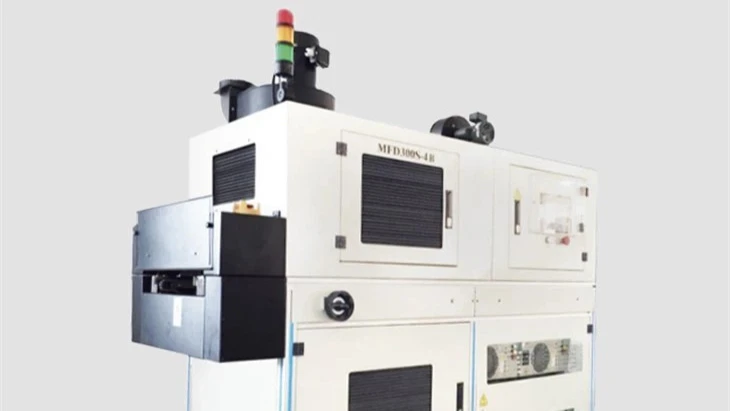

![Inline UV Curing Oven]()
Inline UV Curing OvenHigh flexibility in module design for curing of adhesive surfaces in seconds enable reliable curing of large adhesive surfaces in seconds and with a service life of more than 6,000 hours.
High flexibility in module design for curing of adhesive surfaces in seconds enable reliable curing of large adhesive surfaces in seconds and
with a service life of more than 6,000 hours. The lamps can be individually adapted to your production conditions.
Our Service
Technical Communication
CTQ : Understand the customer’s application and determine key performance requirements.
Problem Resolution: Provide technical data such as product physical properties, weather resistance, conductivity/thermal performance, and compliance certifications.
Case Sharing: Share successful solutions from previous projects to offer insights for similar applications.
Technical Support
On-Site Guidance: Offer on-site assistance when needed to support adhesive application, curing, and process optimization.
Application Training: Train the customer’s technical team on adhesive usage and quality control to enhance their application capabilities.
Problem-Solving: Quickly address issues such as adhesion failure or curing anomalies during the usage process and propose effective solutions.
|
Product Name |
Inline UV Curing Oven |
|
Dimensions |
1500*1100*1620mm |
|
Control Mode |
PLC+Touch Screen |
|
PCBA width range |
50～450mm |
|
Direction |
L-R (standard),R-L (optional) |
|
Conveyor speed |
0.3-2.5M/min |
|
Component height |
±100mm |
|
Transport Height |
900±20mm |
|
Width Adjustable |
By Manual |
|
Conveying Method |
Hard oxygen aluminum alloy rail+35B stainless steel chain |
|
Rail Length |
1500mm |
|
Conveyor Chain |
5mm extension pin stainless steel chain |
|
Rail Load Capacity |
4KG/M |
|
Conveying motor |
Variable frequency speed regulating motor |
|
Exhaust |
15m³/ min at maximum power |
|
Lamp Quantity |
One Group/Two Group(optional) |
|
Lamp tube layout |
Upper rail light source |
|
Irradiation direction |
Top to Bottom |
|
Lifting height of lamp group |
5-100mm |
|
Lamp wattage |
6KW |
|
Total power |
7KW(one group lamp)/13KW(two group lamp) |
|
Voltage |
380V |
|
Effective life of lamp tube |
≥1500h |
Features
1.Stainless steel chain conveyor equipped with chain drag bars, extending the service life of the track.
2.Touch screen control with parameterized setting of transportation speed for digital operation.
3.Parameterized lamp power percentage setting with automatic entry into energy-saving mode during standby or when the track is idle.
4.Special heat dissipation design prevents damage to heat-sensitive materials caused by excessive furnace temperatures.
5.Advanced exhaust system with front, rear, side, and bottom exhaust outlets; automatic circulation and controllable furnace temperature.
6.Four sets of air ducts help lower product surface temperature, enhance UV light energy reflection, reduce light loss, and protect staff from injury. The lamp set is easy to replace, with a replacement time ≤ 10 minutes.
7.Open rack design with acrylic front door, making operation and maintenance extremely convenient and easy to remove.
8.Double-layer UV protection: observation window can be closed when not in use, with one layer for heat insulation and one for light insulation. Allows real-time observation of the board status.
9.Adjustable lamp height, manual adjustment range: 0–100mm.
10.Equipped with rail inlet and outlet ventilation systems to effectively remove the odor from solidified ozone.
11.Supports circuit board components with a height tolerance of ±100mm (100mm above and below).
12.Optional features: electric rail adjustment, electric lamp lifting system, and bottom return board.
