Your Professional Automatic Dispenser Supplier
MCOTI Technology Co., Ltd., established in 2008, is a professional electronic adhesive supplier. The company is committed to providing comprehensive solutions including adhesive materials, curing and dispensing equipment for electronic equipment and automotive parts assembly.
In terms of products, MCOTI specializes in the production of adhesives, industrial glues, electronic adhesives, dispensing equipment, adhesive curing equipment and other products, and provides customers with excellent customized solutions and services.
-
![Liquid Metal Dispensing]()
Liquid Metal DispensingOur custom-engineered equipment is designed to precisely deliver liquid metal via jetting or contact dispensing, ensuring optimal results. We manufacture corrosion-resistant equipment, and both the -
![Automatic Solder Paste Dispenser]()

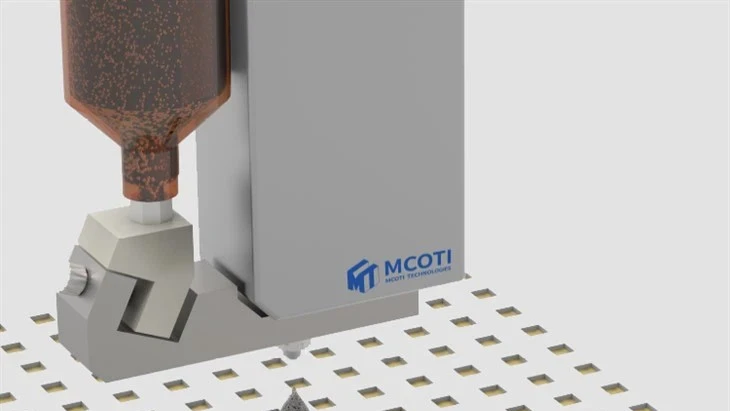

Automatic Solder Paste DispenserWe are highly recognized for our solder paste dispensing technology. It is capable of dispensing microdots and tiny lines – something unseen in today’s dispenser industry. As a result, our clients -

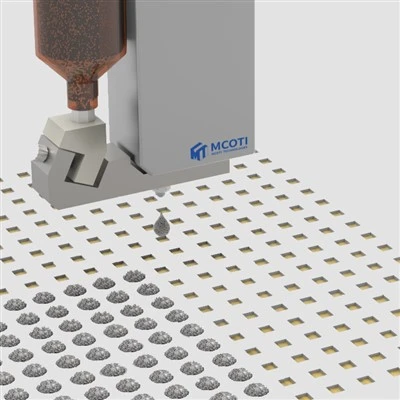

![Solder Paste Jet Dispensing]()
Solder Paste Jet DispensingThe MHS-XSL-G pioneered a full range of innovative micro-soldering versatility where both stencil and jet printing are underachieve.
MCOTI's equipment stands out with 100% reliability. In addition to high-performance UV curing systems, the company also offers advanced dispensing equipment. With exceptional precision, high-speed operation, and a compact design, these dispensing solutions seamlessly integrate into any production line, ensuring efficiency and consistency in industrial applications. Furthermore, the equipment supports solder paste dispensing, making it ideal for advanced packaging applications.
Our Service
Technical Communication
CTQ : Understand the customer’s application and determine key performance requirements.
Problem Resolution: Provide technical data such as product physical properties, weather resistance, conductivity/thermal performance, and compliance certifications.
Case Sharing: Share successful solutions from previous projects to offer insights for similar applications.
Technical Support
On-Site Guidance: Offer on-site assistance when needed to support adhesive application, curing, and process optimization.
Application Training: Train the customer’s technical team on adhesive usage and quality control to enhance their application capabilities.
Problem-Solving: Quickly address issues such as adhesion failure or curing anomalies during the usage process and propose effective solutions.
Solder paste dispenser machines are specialized machinery designed to apply solder paste onto PCBs with precision and reliability. They consist of several key components, including the cone, dispensing unit, and control system. The cone directs the solder paste through a nozzle, while the dispensing unit holds and dispenses the paste. The control system manages the entire process, ensuring precise paste application.
Depending on the complexity of the PCB design and production requirements, machines can be categorized into manual, semi-automatic, and fully automatic systems. Manual dispensers are typically used in low-volume production runs, where operators manually adjust the paste dispensing. Semi-automatic systems offer increased efficiency by automating some operations, such as paste dispensing, while fully automatic systems integrate advanced control systems and automation for maximum efficiency and precision. Each type caters to different production needs, from high-volume manufacturing to intricate design requirements.

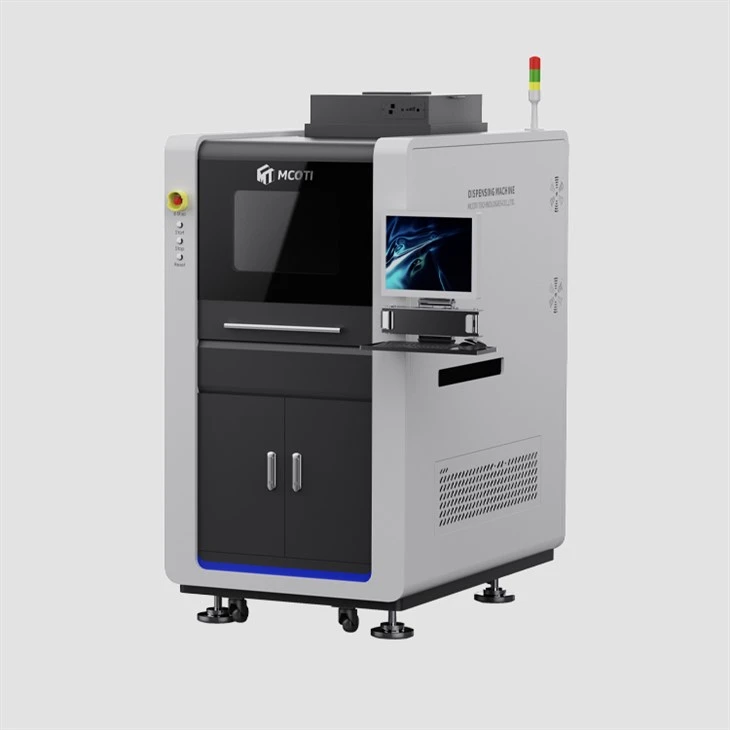

Automatic Solder Paste Dispenser Specifications
|
Dispensing Range |
x400*Y400*Z60mm |
X600*Y600*Z60mm |
X1200*Y400*Z60mm |
|
Product Weight |
Max.4.5kg |
||
|
Product Thickness |
Max.6mm |
||
|
Maximum Speed |
1000mm/s |
||
|
Vision Methodology |
CCD |
||
|
Cleaning System |
Auto |
||
|
lnjection Valve Speed |
200 points/s |
||
|
Acceleration |
1g |
||
|
Weighing Accurccy |
0.1mg |
||
|
Dispensing Accuracy |
±0.02mm |
||
|
Repeated Accuracy |
±0.01mm |
||
|
Product Changeover |
<10Mins |
||
|
Transport Height |
900±20mm |
||
|
Transport Direction |
Left-Right; Right-Left; Left-Left; Right-Right |
||
|
Power Supply |
1 PH AC 220V 50/6OHz(Option:110V to 230V) |
||
|
Weight |
650 Kg |
850 Kg |
1150 Kg |
|
Dimension |
L770*W1200*H1500mm |
L1065*W1505*H1500mm |
L1690*W1200*H1500mm |
Key Features
Transmission Structure System
Paste dispenser uses an X-Y linear motor drive for precise movement, with a positioning accuracy of 3σ±5um on the X, Y, and Z axes.
The load-type gantry structure ensures stable, accurate performance during high-speed operation.
Function Configuration
A customizable platform adapts to each customer’s specific production needs.
Automatic correction adjusts for substrate warp height, ensuring consistent results.
Dual cameras provide real-time monitoring of material penetration, adjusting the next filling process for optimal precision.
Vision Non-Stop
The non-stop high-speed vision system detects and compensates at a rate of 100 chips per second.
It automatically detects chip position and height deviations, correcting them during the coating process.
Dual compensation for path and glue amount reduces excess glue, optimizing the application at overlapping points.
Platform System
Integral frame, marble platform supporting moving parts, moving parts using imported accessories, to ensure high accuracy and stability of equipment operation.
Dispensing System
Needle dispensing and spray valve dispensing can be selected.
Spray valve dispensing can be fixed and rotary.
CCD camera, laser altimeter and glue sensor can be selected.
Calibration System
Calibration Platform Standards: 0.1mg
Electronic Scale, Scale, Ceramic Plate,
Mechanical Height Detection, Vacuum
Cleaning, Gluing Cup.
Available Dispensing Materials
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw glue, etc.
Automatic Solder Paste Dispenser Application
Electrical Products
Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
Communication Products
Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
