China Adhesive Bonding Manufacturers Suppliers Factory - Customized Adhesive Bonding

Your Professional Adhesive Bonding Supplier

MCOTI Technology Co., Ltd., established in 2008, is a professional electronic adhesive supplier. The company is committed to providing comprehensive solutions including adhesive materials, curing and dispensing equipment for electronic equipment and automotive parts assembly.
In terms of products, MCOTI specializes in the production of adhesives, industrial glues, electronic adhesives, dispensing equipment, adhesive curing equipment and other products, and provides customers with excellent customized solutions and services.

Thermal Silicone Grease
Thermal silicone grease is a high-performance, thermally conductive material typically made from silicone oil mixed with thermal fillers (such as aluminum oxide, boron nitride, etc.). It has

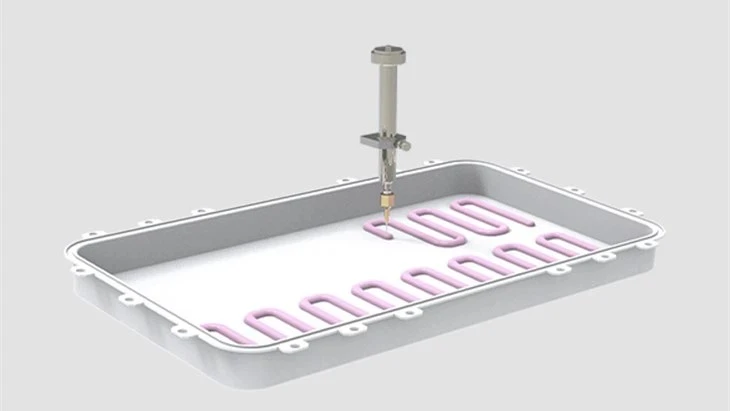

Thermally Conductive Epoxy Potting Compound
Motors generate a lot of heat when they are working, and excessively high temperatures may cause damage to motor components or performance degradation.
Water Based Epoxy Insulation Paint
It is a one-part, solvent free, thermal curing aqueous epoxy adhesive. It has excellent bonding strength to various substrates , especially for SUS and aluminum.
Thermally Conductive Coating
It is an one-part, thermal-curing aqueous epoxy coating. Designed for power devices, it serves as a thermally conductive coating.
Acrylic Conformal Coating for PCB
Acrylic conformal coating is a protective material applied to printed circuit boards (PCBs) to shield them from environmental factors like moisture, dust, chemicals, and temperature changes.
Mcoti CIPG
Liquid gasket sealants provide a simpler solution for sealing complex 3D geometries that are difficult to reliably seal with traditional gaskets.

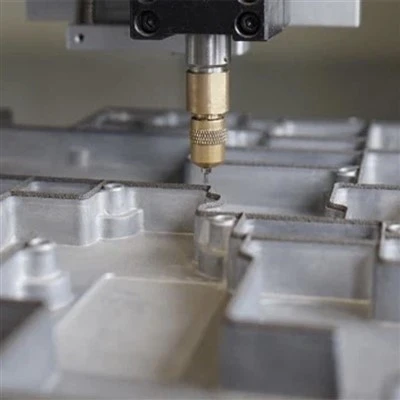

EMI Shielding Gasket
Under certain curing conditions, FIP (Form-In-Place) electrically conductive silicone adhesives can be formed into fine gaskets with advantages such as: good electrical conductivity, excellent

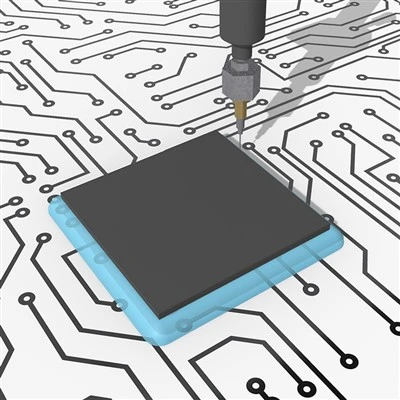

BGA Underfill Epoxy
This epoxy-based thermo-set material is typically formulated with fillers, such as silica, to ensure optimal performance.

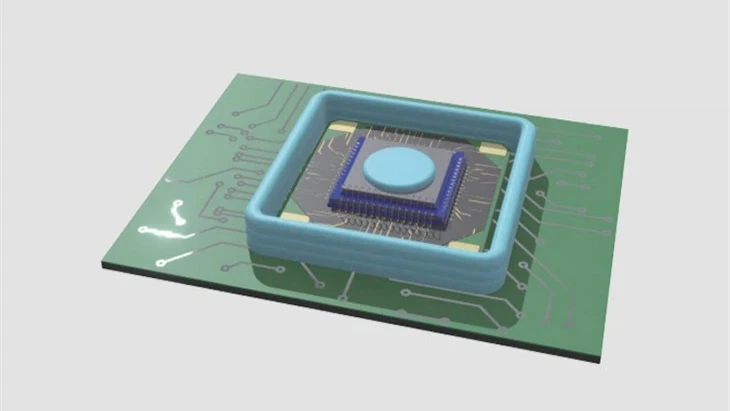

Dam and Fill for SMD
Dam and Fill is a common packaging process, mainly used for SMD (Surface Mount Device) and BGA, CSP (Chip Scale Package) and other packages to improve their mechanical strength, thermal stability and
Die Attach and Wire Bonding
Die attach and wire bonding are fundamental processes in semiconductor packaging, crucial for connecting semiconductor chips (die) to the package or substrate and for interconnecting them with

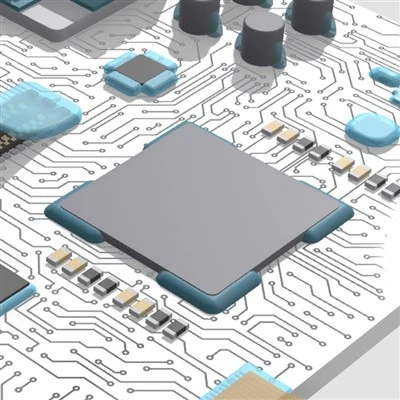

Corner Bonding and Edge Bonding
Chips are the core brains of electronic products. Without glue protection, the solder bumps between chip and PCBs may crack due to drops, distortions, and collisions, thus resulting in the failure of
Thermal Interface Gel
Thermal gap filler gel is a viscous substance with high thermal conductivity that is widely used in thermal management systems of electronic devices.

First 12 3 Last

With its extensive range of high-tech adhesives, MCOTI's product portfolio is a testament to quality, renowned for its exceptional functionality and reliability. These adhesives feature unique additional properties, making them particularly suitable for short-cycle industrial production, bonding of miniature components, and thermal management of high-power devices. As a result, they are widely used in industries such as microelectronics, displays, and new energy vehicles.

Our Service

01.

Technical Communication

CTQ : Understand the customer’s application and determine key performance requirements.

Problem Resolution: Provide technical data such as product physical properties, weather resistance, conductivity/thermal performance, and compliance certifications.

Case Sharing: Share successful solutions from previous projects to offer insights for similar applications.

02.

Technical Support

On-Site Guidance: Offer on-site assistance when needed to support adhesive application, curing, and process optimization.

Application Training: Train the customer’s technical team on adhesive usage and quality control to enhance their application capabilities.

Problem-Solving: Quickly address issues such as adhesion failure or curing anomalies during the usage process and propose effective solutions.

MCOTI Low Thermal Resistance Thermal Grease Product Recommendations

Typical Products:

Products	Appearance	Viscosity mPa.s	Specific Gravity	BLT μm	Thermal Conductivity W/(m-K)	Thermal Resistance K/W	Features
N-Sil 8608	White	200	2.2	2	0.8	0.20	High reliability Low BLT
N-Sil 8620	Grey	120	3.3	14	2.0	0.09	High reliability Low thermal resistance
N-Sil 8630	Grey	200	3.0	35	3.0	0.18	Best stencil printing performance
N-Sil 8626LS	Blue	200	3.1	7	2.6	0.05	Ultra low thermal resistance
N-Sil 8628LS	Blue	120	3.5	14	2.8	0.07	Low thermal resistance Best comprehensive Performance
N-Sil 8636	White	80	3.3	37	3.6	0.15	Low viscosity High thermal conductivity
N-Sil 8640E	Grey	200	2.8	21	4.3	0.04	Tim1 Ultra low thermal resistance High thermal conductivity
N-Sil 8650-2	Grey	195	3.6	70	5.5	0.17	Printable High Thermal Conductivity

Ingredients

SILICONE OIL、ALUMINUM OXIDE、ZINC OXIDE、OIL-SOLUBLE BLACK、BORON NITRIDE、FUMED SILICA、SILVER、SILANE COUPLING AGENT

Usage

First, make sure the surfaces of the heating and cooling components are clean and oil-free. Then use the syringe piston to squeeze a small amount of glue to the contact surface.

Use a scraper to evenly apply the glue to the surface of the heating component.
Finally, gently press the cooling component to ensure a tight fit.

Function

1. Excellent thermal conductivity, fills gaps and improves heat dissipation.

2. Convenient design, easy to control dosage.

3.Insulated and durable, providing long-lasting heat dissipation support for graphics cards, memory, etc.

Operation method

● The surface in contact with thermal grease must be clean and dry.
● Apply a thin layer of thermal grease evenly on the plane of the electronic device or radiator.
● Press the plane of the electronic device and the heat sink so that the thermal grease forms a very thin interface between the two planes
● Reinforce the radiator.

We offer comprehensive customization services for thermal grease to meet your specific needs, including:

Product Customization
Specifications and Formulation: Adjust the thermal conductivity, viscosity, and other parameters of the thermal grease according to your application requirements to ensure optimal heat dissipation.

Packaging Customization
Packaging Formats: Provide various packaging options such as tubes, bottles, and syringes to suit different usage scenarios.
Capacity Options: Offer capacities ranging from small packages (e.g., 2g, 4g) to large packages (e.g., 50g, 100g, 200g) to meet diverse customer needs.
Packaging Design: Create unique packaging styles based on your brand image to enhance the market competitiveness of your products.

Logo Customization
Printing Services: Print your company logo or brand identifier on product packaging to enhance brand recognition.
Design Assistance: Our professional team can assist with logo or packaging graphic design to ensure the final design meets your expectations.

MCOTI Water based Epoxy Insulation Paint Product Recommendations

Typical Products EW EP 6345:

Chemical Type		Aqueous Epoxy
Appearance		Milky white
Viscosity @ 25°C Brookfield DV2T, SP 14# @20rpm	MPa.s	1500
Specific Gravity	G/cm³	~1.0
Insulation resistance ASTM A717	Ω•cm2	> 1000
Hardness DIN EN 13523-4		5H
Bending test DIN 1519 (ø cylinder 3 mm)		Crack free
Dielectic Strength	KV/mm	> 20

Our Certificate

FAQ

Q: Do you support OEM orders?

A: Yes, we offer OEM services. Please share your design requirements, logo, packaging preferences, or specific features, and our team will provide a customized solution and quote within 24 hours.

Q: What’s the minimum order quantity (MOQ) for customized products?

A: The MOQ varies by product. For standard items, it’s usually 100 units; for customized orders, it may range from 1000 to 10000 units. Contact us for specific details.

Q: Can I request product samples before placing a bulk order?

A: Yes, sample orders are available. Samples can be shipped within 5 days, and the cost includes product price and shipping fees. Contact us to arrange sampling.

Q: How do you ensure product quality?

A: We implement strict quality control at every production stage, from raw material inspection to final product testing. Our products comply with ISO international standards, and certificates can be provided upon request.

We're professional adhesive bonding manufacturers and suppliers in China, specialized in providing high quality customized service. If you're going to buy adhesive bonding made in China, welcome to get free sample from our factory.
