Inline UV Curing Oven

High flexibility in module design for curing of adhesive surfaces in seconds enable reliable curing of large adhesive surfaces in seconds and with a service life of more than 6,000 hours. The lamps can be individually adapted to your production conditions. All surface UVA can come up with particularly high intensities of over 1,200-1,400 mW/cm².

• Electroless microwave UV lamp

◦ Short cycle times thanks to the highest intensities

◦ High process reliability through homogeneity and intensity stability

◦ Different spectra

• High process reliability through homogeneity and intensity stability

• Long life > 6,000 hours

◦ Different spectra

• Low oven temperature

• Belt or chain conveyor

• User-friendly

MFS300S-2B/C

• Single-sided irradiation,equipped with 2 lights

• Design and development for PCBA spraying line

• Adjustable width of conveyor belt : 100-400 (mm)

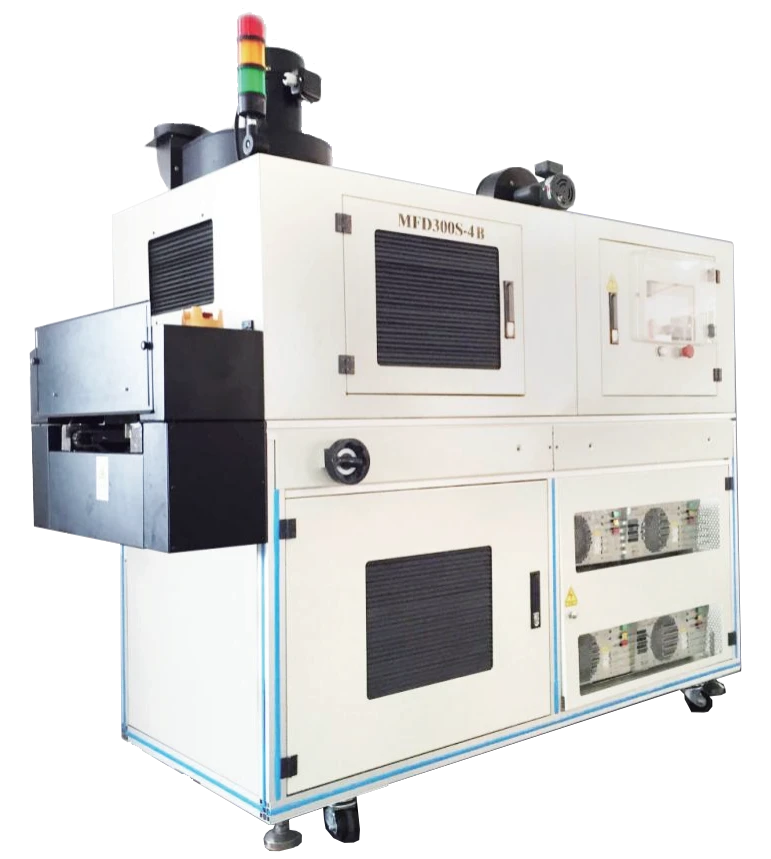

MFD300S-4B

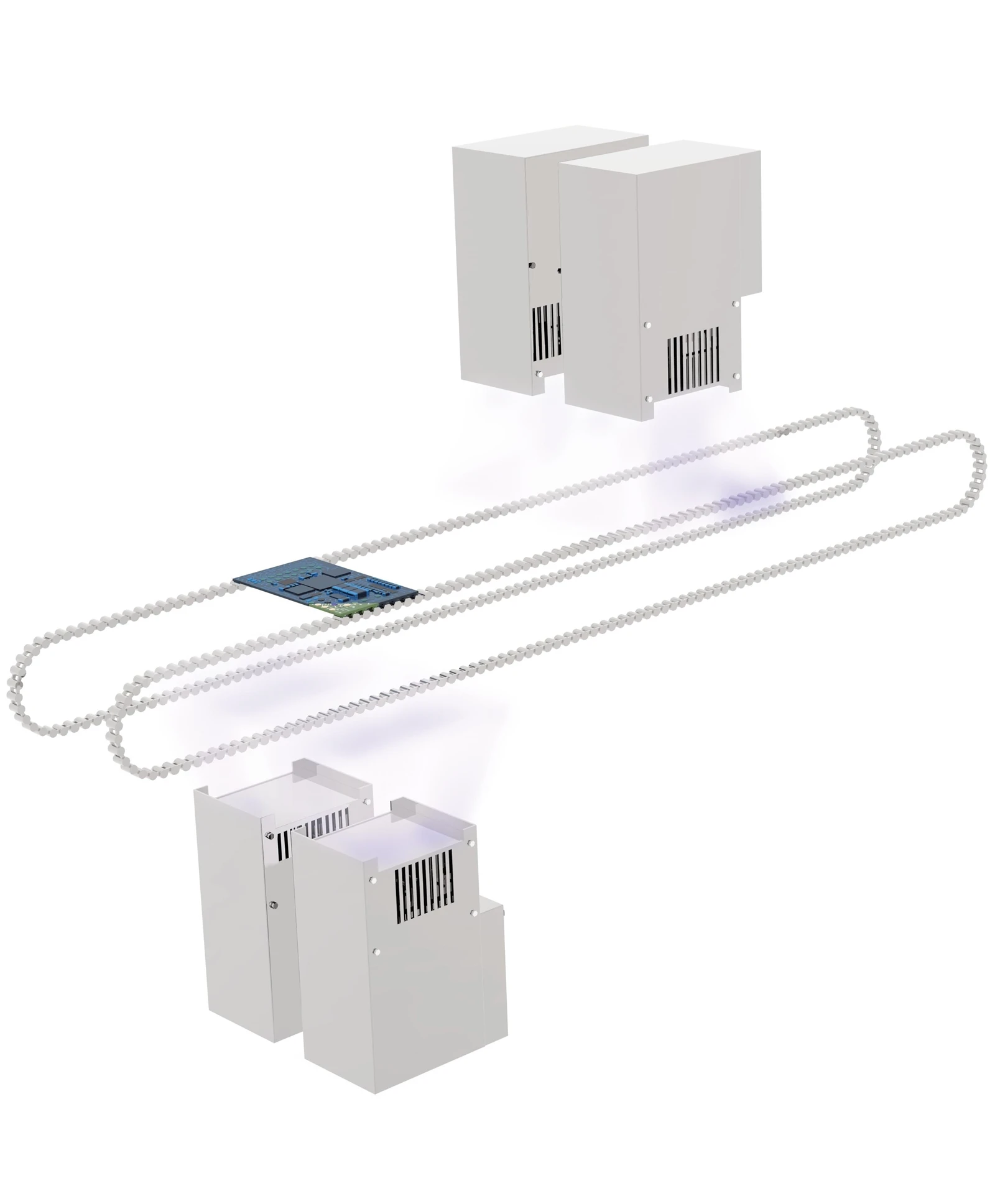

• Double-sided irradiation, curing on the front and back sides at the same time

MFS300S-2F

• Intelligent single side irradiation, equipped with 2 lights

• Intelligent control, realizing interconnection with MES system of the smart factory

• Real-time monitoring and comparing parameter

◦ Monitoring of furnace chamber temperature ≤ 90°C

◦ Monitoring Chain speed

• Adjustable width of conveyor belt : 100-400 (mm)

MFD300S-4F

• Intelligent double side irradiation, equipped with 2 lights

• Intelligent control, realizing interconnection with MES system of the smart factory

• Real-time monitoring and comparing parameter

◦ Monitoring of furnace chamber temperature ≤ 90°C

◦ Monitoring Chain speed

• Adjustable width of conveyor belt : 100-510 (mm)
