Conductive Adhesive for Crystal Oscillators

Crystal oscillators, often referred to as the "heart" of a circuit, are well-known components. Processors, memory modules, analog-to-digital converters, and other chips rely on the precise clock signals they generate to function properly.

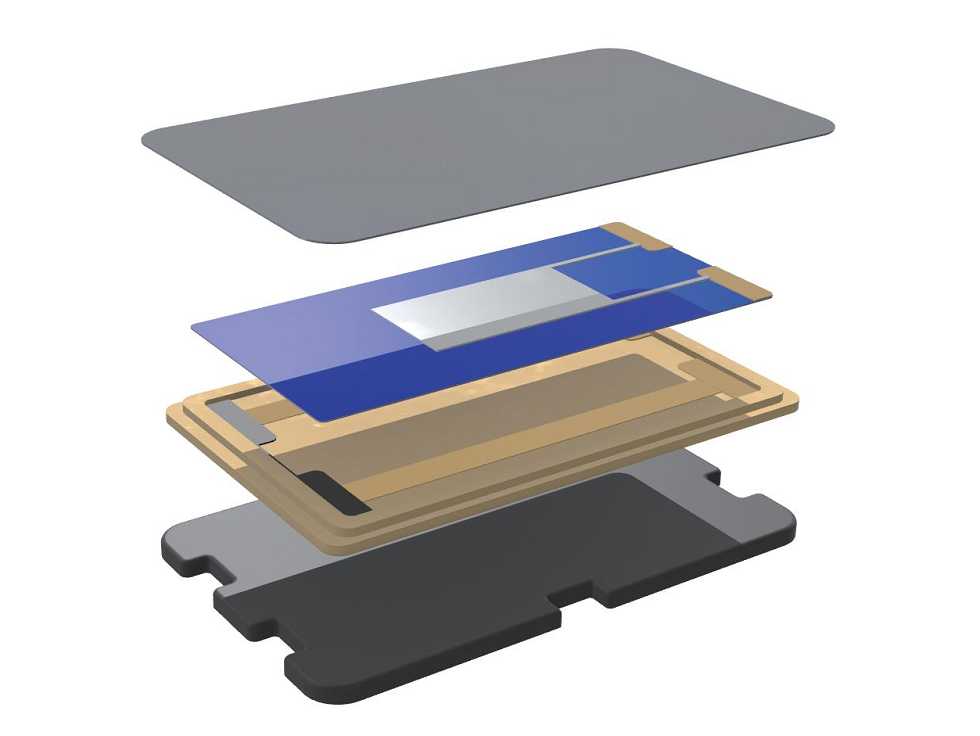

Conductive adhesives for crystal oscillators are primarily used in the assembly of electronic components, especially in scenarios that demand precise conductivity and high operational stability. These adhesives are specifically designed as high-performance bonding materials for crystal oscillators, sensors, and other electronic components.

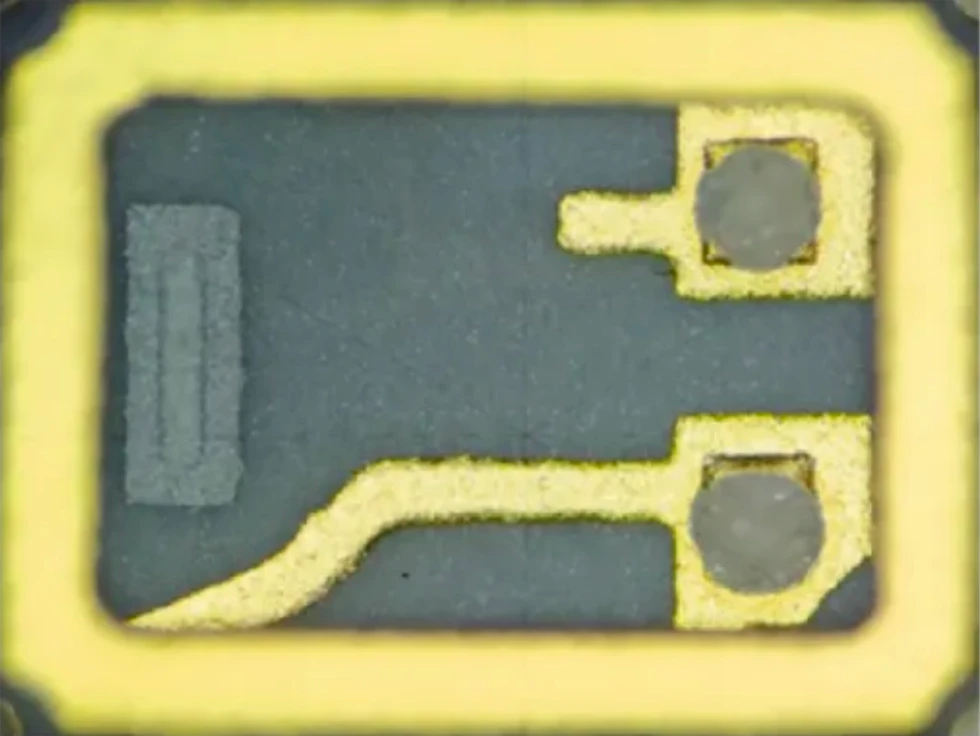

MCOTI has developed specialized adhesives for crystal oscillators, as the properties of adhesives significantly impact oscillation performance. MCOTI's conductive adhesive is a one-component, heat-curable silicone featuring high viscosity, excellent thixotropy, and outstanding conductivity. It is particularly suited for telecommunications and automotive electronics, meeting the stringent demands for bonding strength, conductivity, and long-term reliability.

1. Outstanding Conductivity

• Extremely low volume resistivity (5.0×10⁻⁴Ω·cm), ensuring stable electrical connections between electronic components.
• Minimizes power loss caused by resistance.

2. High Bonding Strength

• Exceptional shear strength on various substrates:
• Au/Au: 3.00 MPa
• Au/Ag: 2.7 MPa
• Au/Si: 1.94 MPa

3. Reliability Under Extreme Conditions

• Retains mechanical properties and conductivity after:
• High-temperature storage: 125°C for 1008 hours
• High-temperature and high-humidity storage: 85°C and 85% RH for 1008 hours
• Thermal cycling: -55°C to 125°C for 100 cycles

4. Superior Process Adaptability

• Excellent thixotropy (TI 5.1) maintains good flowability and stability during application.
• Optimized for fine dispensing processes, reducing defects caused by poor adhesive flowability.

Typical Products:
